VMC Standard series
-
BV series
-
Overloaded
-
High-precision type

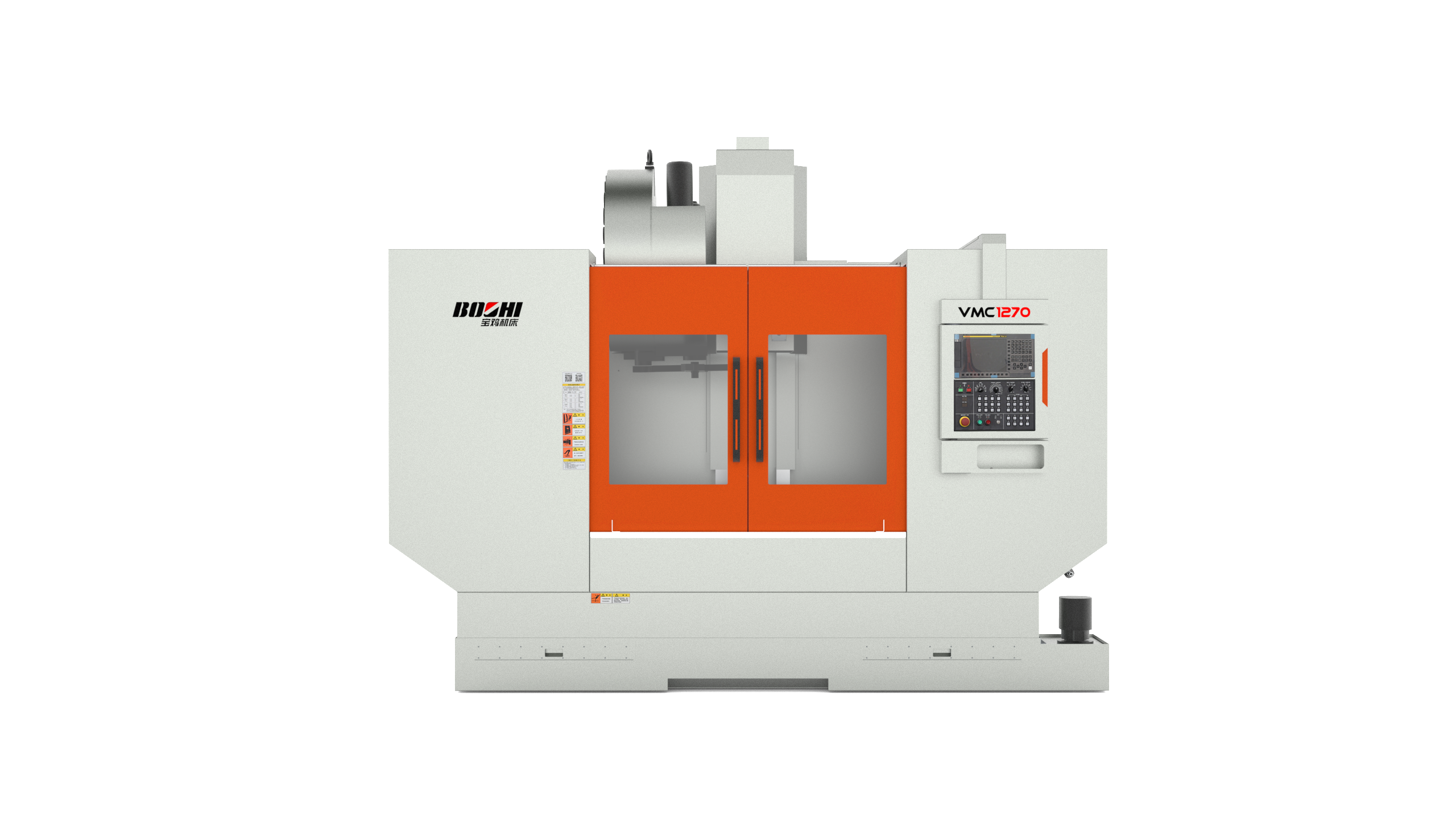

VMC1270 /1370 /1580 /1690 is a fixed-column vertical machining center featuring modular design, delivering compact structure and ease of maintenance. Its three-axis hardened guideway system ensures superior stability, extended service life, and enhanced overall performance. With a sleek, aerodynamic exterior and meticulous detailing, the VMC1270 excels in high-speed, high-precision, and high-rigidity machining of complex medium-to-large parts. Ideal for industries including automotive components, valves, construction machinery, IT, optics, and medical devices, it enables multi-process machining (milling, drilling, boring, tapping, etc.) in a single workpiece clamping.
|
Item |
VMC850B |
VMC1060B |
VMC1270 |
VMC1370 |
VMC1580 |
VMC1690 |
|
|
Worktable |
Dimensions（W×L）（mm×mm） |
500×1050 |
600×1300 |
700×1360 |
710×1400 |
800×1700 |
900×1800 |
|
T-slots |
5-18（H8） |
5-18（H8） |
5-18（H8） |
5-18（H8） |
5-22（H8） |
5-22（H8） |
|
|
T-slot Spacing (mm) |
90 |
120 |
152.5 |
152.5 |
135 |
165 |
|
|
Max Load Capacity (kg) |
600 |
800 |
1000 |
1000 |
1500 |
1600 |
|
|
Spindle |
Taper |
BT40 |
BT40 |
BT50 |
BT50 |
BT50 |
BT50 |
|
Power (kW) |
7.5/11（FANUC）or 7.5（Siemens） |
7.5/11（FANUC）or 7.5（Siemens） |
15/18.5（FANUC）or 15（Siemens） |
15/18.5（FANUC）or 15（Siemens）） |
15/18.5（FANUC）or 15（Siemens） |
18.5/22（FANUC） |
|
|
Speed (rpm) |
8000 |
8000 |
7000 |
7000 |
7000 |
7000 |
|
|
Drawbar Type |
MAS 403 P40T-Ⅰ |
MAS 403 P40T-Ⅰ |
MAS 403 P50T-Ⅰ |
MAS 403 P50T-Ⅰ |
MAS 403 P50T-Ⅰ |
MAS 403 P50T-Ⅰ |
|
|
Travel |
X-axis (mm) |
800 |
1000 |
1200 |
1300 |
1500 |
1600 |
|
Y-axis (mm) |
500 |
600 |
700 |
700 |
800 |
900 |
|
|
Z-axis (mm) |
550 |
600 |
600 |
650 |
700 |
680 |
|
|
Capacity |
Spindle to Column (mm)  |
560 |
655 |
785 |
785 |
810 |
950 |
|
Spindle to Table (mm) |
150-700 |
180-780 |
150-750 |
150-800 |
185-885 |
160-840 |
|
|
Feed |
Max Feed (mm/min) |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
|
Rapid Traverse (m/min) |
20/20/20 |
20/20/20 |
20/20/20 |
20/20/20 |
20/20/20 |
20/20/20 |
|
|
X、Y、Z Motor Power (kW) |
≥1.8 |
≥2.5 |
≥2.5 |
≥2.5 |
≥4 |
≥4 |
|
|
Tool Magazine |
Capacity |
24（Tool Magazine） |
24（Tool Magazine） |
24（Tool Magazine） |
24（Tool Magazine） |
24（Tool Magazine） |
24（Tool Magazine） |
|
Max Tool Weight (kg) |
8 |
8 |
15 |
15 |
15 |
15 |
|
|
Max Tool Size (mm) |
Φ80×300 |
Φ80×300 |
Φ110×350 |
Φ110×350 |
Φ110×350 |
Φ110×350 |
|
|
Other |
Power Supply (kVA) |
15 |
20 |
35 |
35 |
35 |
45 |
|
Gross Weight (kg) |
6500 |
8000 |
9500 |
11000 |
13000 |
14500 |
|
|
Net Weight (kg) |
6000 |
7500 |
9000 |
10500 |
12500 |
14000 |
|
|
Air Consumption (L/min) |
350 |
350 |
350 |
350 |
350 |
350 |
|
|
Air Pressure (MPa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
|
Dimensions (mm) |
2800× 2300×3100 |
3200× 2750×3200 |
3600× 3200×3100 |
3600× 3200×3100 |
4300× 3750×3100 |
4500× 3800×3300 |
|
