VMC Standard series
-
BV series
-
Overloaded
-
High-precision type

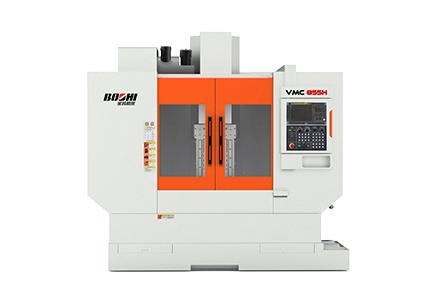

The VMC-H series Vertical Machining Center is a high-speed 3-axis linear guideway vertical machining center. It adopts roller linear guideways for the X/Y/Z axes and a counterweight-free balance structure for the Z-axis, featuring a cost-effective and lightweight design. The whole machine delivers high speed, high precision, stability, and reliability.
It is suitable for milling, drilling, reaming, boring, tapping, countersinking, and other machining processes of valves, cams, molds, plates, discs, and box-type parts in industries such as automotive, motorcycle, aerospace, mold, communication, medical equipment, and instrumentation. It can be used for small-to-medium batch production (multi-variety) as well as mass production in automated lines.
|
Item |
VMC855H |
VMC1162H |
|
|
Worktable |
Dimensions（W×L）（mm×mm） |
550×1000 |
600×1200 |
|
T-slots |
5-18（H8） |
5-18（H8） |
|
|
T-slot Spacing (mm) |
90 |
100 |
|
|
Max Load Capacity (kg) |
500 |
800 |
|
|
Spindle |
Taper |
BT40 |
BT40 |
|
Power (kW) |
7.5/11（FANUC） |
11/15（FANUC） |
|
|
Speed (rpm) |
8000 |
8000 |
|
|
Drawbar Type |
MAS 403 P40T-Ⅰ |
MAS 403 P40T-Ⅰ |
|
|
Travel |
X-axis (mm) |
800 |
1100 |
|
Y-axis (mm) |
550 |
600 |
|
|
Z-axis (mm) |
550 |
700 |
|
|
Capacity |
Spindle to Column (mm)  |
630 |
690 |
|
Spindle to Table (mm) |
120-6711 |
120-820 |
|
|
Feed |
Max Feed (mm/min) |
10000 |
10000 |
|
Rapid Traverse (m/min) |
48/48/32 |
36/36/32 |
|
|
X、Y、Z Motor Power (kW) |
≥1.8 |
≥3 |
|
|
Tool Magazine |
Capacity |
24（Tool Magazine） |
24（Tool Magazine） |
|
Max Tool Weight (kg) |
8 |
8 |
|
|
Max Tool Size (mm) |
Φ80×250 |
Φ80×250 |
|
|
Other |
Power Supply (kVA) |
20 |
26 |
|
Gross Weight (kg) |
5000 |
6200 |
|
|
Net Weight (kg) |
4500 |
5700 |
|
|
Air Consumption (L/min) |
350 |
350 |
|
|
Air Pressure (MPa) |
0.6-0.8 |
0.6-0.8 |
|
|
Dimensions (mm) |
2800× 2900×2750 |
3300× 3500×3100 |
|
