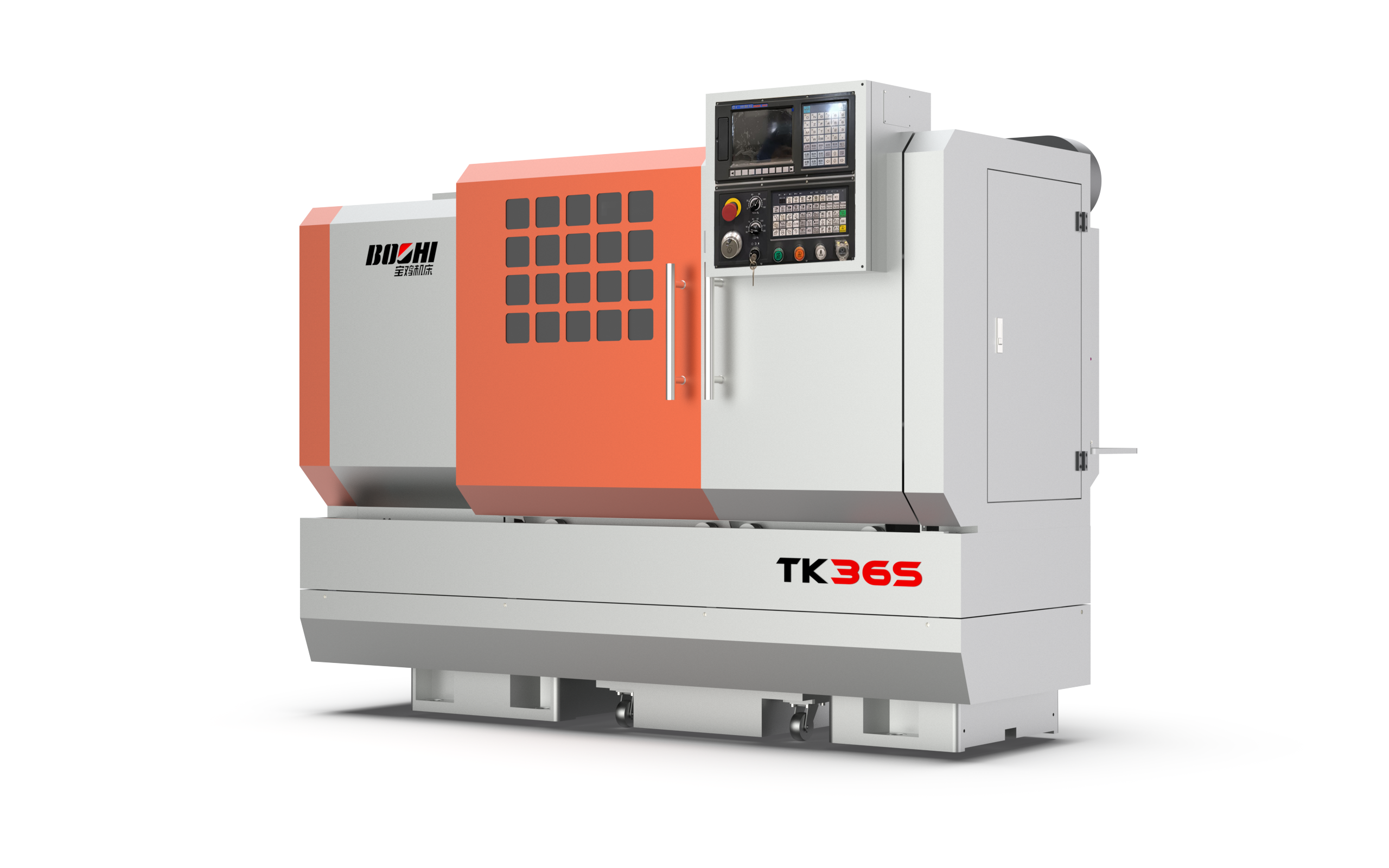

TK36 series CNC lathe is controlled by GSK control and driven by servo motors. It has two 2 controllable axes. Operations of internal and external turning, taper turning, circular surface turning, facing, inch and metric threading are performed. Standard equipment---4-station vertical power turret meets different cutting requirements. The sliding door and a variety of caution plates guarantee operator’s safety. The lathe applies to light and manufacturing engineer industries for speedy and efficient machining of small/medium size workpieces especially nonferrous metals, or for teaching and training purposes in colleges.
|
Description |
TK36S |
|||
|
Capacity |
Max. swing over bed (mm) |
Φ360 |
||
|
Max. swing over slide (mm) |
Φ180 (4/6-station)/Φ105 (comb type tool rest) Φ120 (rear-mounted tool rest in case of 4-station) |
|||
|
Max. turning dia. (mm) |
Φ320 (4-station, comb type tool rest)/ Φ220 (6-station) |
|||
|
Distance between centers (mm) |
750/690(6-station)/650* |
|||
|
Max. turning length (mm) |
600/540(6-station)/500* |
|||
|
Spindle |
Spindle thru-hole (mm) |
Φ57 |
||
|
Spindle nose |
D type No.6 manual chuck ISO702/I A2-5 6″ hyd. chuck ISO702/I A2-6 8″ hyd. chuck |
|||
|
Rotation sped of spindle (r/min) |
140-3000(infinite variable speed) |
|||
|
Max. output torque of spindle (N·m) |
83 |
|||
|
Chuck dia. (mm) |
Φ200 |
|||
|
Power of main motor (kw) |
5.5 |
5.5 |
||
|
Tailstock |
Dia./ travel of quill (mm) |
Φ55/120 (100 hyd. tailstock); Φ75/150* (130* hyd. tailstock) |
||
|
Taper of center |
MT No.4/ MT No.5* |
|||
|
Carriage |
Travel X/Z (mm) |
200(150 6-station)/610/550(6-station)/510* |
||
|
Rapid traverse X/Z (m/min) |
6/8 |
|||
|
Turret |
Number of stations/type |
4 (vertical)/6 (horizontal, optional) |
||
|
Dia. of boring tool (mm) |
20×20 |
|||
|
Tool section (mm) |
Φ32 |
|||
|
Others |
Power source (kVA) |
12 kVA |
||
|
Belt of main motor |
3V-670 |
SPZ1987 |
||
|
Dimension (L×W×H) (mm) |
2150×1260×1600 |
|||
|
Total weight (kg) |
1700 |
|||
|
Max. machining weight (supported by tailstock center) (kg) |
550(Ф200 manual 3-jaw chuck), 360(6" hyd. chuck), 550(8" hyd. chuck) |
|||
