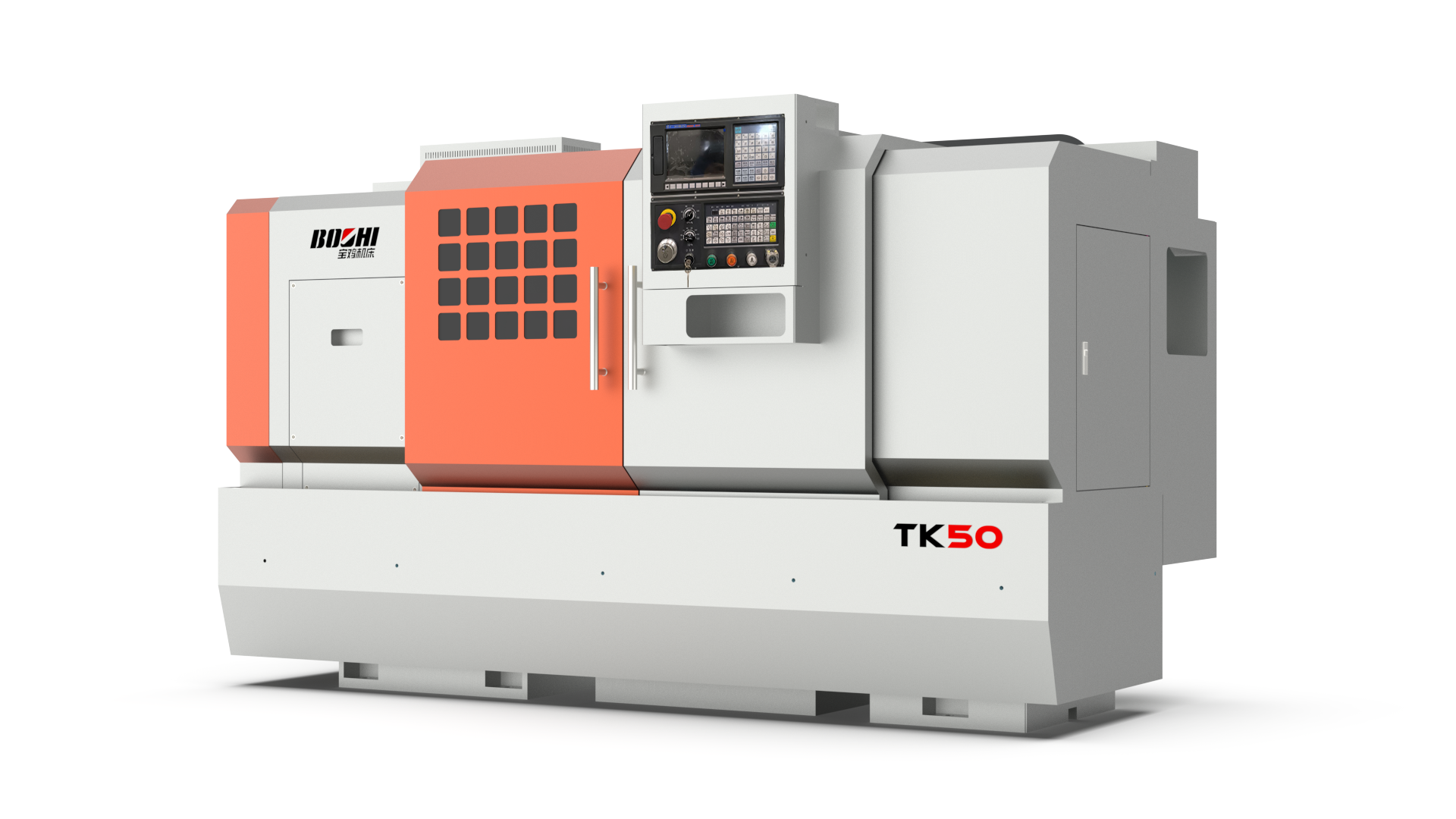

TK50 is an easily-operated CNC lathe and driven by a main servo motor. This machine features an independent spindle structure and outputs infinite variable speed. Controlled by GSK control the lathe has two controllable axes. It can perform OD and ID turning, taper and arc turning, facing, metric and inch threading automatically. Suitable for chuck work and shaft work of multi-specification medium/small batches, especially those complicated and high accuracy workpieces.
|
Item |
Unit |
TK50 |
||||||||
|
Max. swing over bed |
mm |
φ500 |
||||||||
|
Max. swing over slide |
mm |
φ280 |
||||||||
|
Max. turning dia. |
mm |
φ500/3501 |
||||||||
|
Max. work length |
mm |
1100 |
1600 |
2100 |
3100 |
|||||
|
Max. turning length |
mm |
1000 |
1500 |
2000 |
3000 |
|||||
|
Spindle bore |
mm |
φ87 |
||||||||
|
Spindle nose |
|
ISO702/ⅠA2-8 |
||||||||
|
Spindle speed |
r/min |
30-2500 |
||||||||
|
Spindle bole |
|
Metric: 1:20 |
||||||||
|
Spindle max. torque output |
N.m |
354 |
||||||||
|
Rapid speed |
m/min |
X：6 Z: 8 |
X: 5 Z: 6 |
|||||||
|
Screw pitch |
mm |
X: 5 Z: 6 |
X: 5 Z: 8 |
|||||||
|
Capacity of turret |
|
4(standard)/6(optional) |
||||||||
|
Tool post width |
mm |
200X200 |
||||||||
|
Max. section of tool |
mm |
25×25/φ32（Boring） |
||||||||
|
Travel of carriage |
mm |
X: 275/235（6-station turret） |
||||||||
|
Z: 1000/1500/2000/3000 |
||||||||||
|
Dia. of tailstock quill |
mm |
φ75（φ80 Hydraulic tailstock） |
||||||||
|
Tailstock quill taper |
|
Manual and hydraulic tailstock MT No.5 （MT No.3 Living hydraulic tailstock） |
||||||||
|
Max. Tailstock quill travel |
mm |
150（130 Hydraulic tailstock） |
||||||||
|
Main motor power |
kW |
15 servo（CTB motor is 13Kw） |
||||||||
|
Drive belt |
|
5V-900 4 pieces |
||||||||
|
Mark1：parameter after ‘/’ is for equip with 6 station turret （Turret disc diameter as φ360）。 |
||||||||||
|
Machine dimension (Length×width×height)
|
mm |
1000 |
2700×1500×1700 |
|||||||
|
1500 |
3200×1500×1700 |
|||||||||
|
2000 |
3700×1500×1700 |
|||||||||
|
3000 |
4700×1500×1700 |
|||||||||
|
Machine weight |
|
model |
1000 |
1500 |
2000 |
3000 |
||||
|
kg |
|
2800 |
3200 |
3600 |
4600 |
|||||
|
Max. work-piece loading weight (center to center) kg: 700 (Ф250 manual 3 jaw chuck) |
||||||||||
