Product Description：

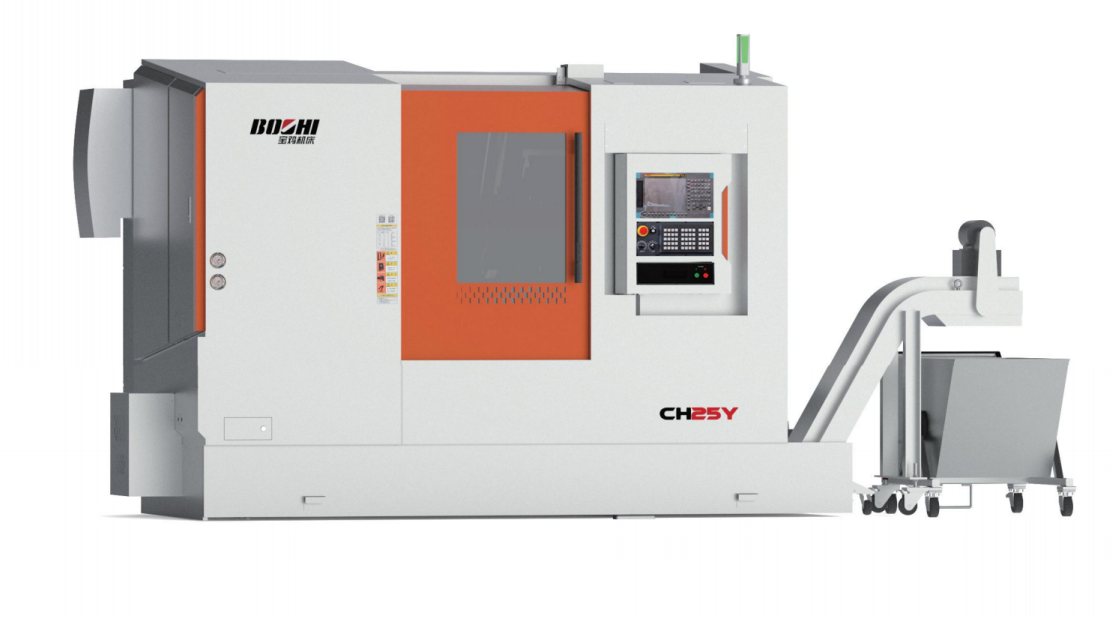

CH25Y turning and milling center is a high-performance and multifunctional turning and milling center controlled by a high-end CNC system. The machine tool has Y-axis and powerful milling functions, which can complete most or all of the processing of complex parts in one installation. It is particularly suitable for the processing of complex shaped parts and can better adapt to the increasing demand for CNC machine tool functions and accuracy in industries such as automotive, light industry, and machinery.

Technical Specifications：



Item

unit

Parameter

Capacity



Max. Swing over bed

mm

Φ 500

Max. Swing over slide

mm

Φ 380

Max. turning length

mm

500

Max. Turning diameter

mm

Φ 340

Max. Bar processing diameter

mm

Φ 51

Spindle



Hydraulic chuck diameter

mm(in)

Φ 2 10(8 ″ )

Spindle nose type



A2- 6（GB/T5900.1）

Diameter of spindle hole

mm

Φ 62

Spindle bearing diameter(front/back)

mm

Φ 1 0 0/ Φ 9 0

Max. Spindle speed

r/min

4 0— 4 000

Spindle motor power

KW

1 1 /15

Tailstock



Quill diameter/stroke

mm

Φ10 0/100

Standard/Rotate type quill taper

MT N o .

5/4

Sub-spindle



Hydraulic chuck diameter

mm(in)

Φ 165 (6 ″) solid

Spindle nose type



A2-5（GB/T5900.1）

Max. Spindle speed

r/min

50-5000

Spindle motor power

KW

1 5 /1 8.5

Feed

Slant angle

DEG

30 ° +30 °

Moving distance (when equipped with tailstock) X/Y/Z

mm

200/120（-60 +60）/510

Moving distance (when equipped with auxiliary spindle) X/Y/Z/Z2

mm

190/100( - 50 + 5 0 )/510/500

Rapid speed X1/Y/Z/Z2

m/min

16/12/24/16

Servo motor tuque(X/XY/Z/Z2)

Nm

10.5/10.5/12/12

Ball screw diameter X/XY/Z/Z2

mm

32/32/40/40

Turret

Tool section



12

Size of tool(turning/boring)

mm

25 × 25/ Φ 40

living tools motor power(cont.)

KW

3.7/5.5

Max speed of living tool

r/min

4000

C axis

Min. Control angle

DEG

0.001

Max. End milling diameter /tapping diameter

mm

Φ 18/ M12

Others

Power supply

kVA

50

Dimension(L*W*H)(without chip conveyor)

mm

3 600×2010×2240

Total weight

kg

6500
