BC3751-HY
PRODUCTS
BC3751-HY watch video
Product Description：

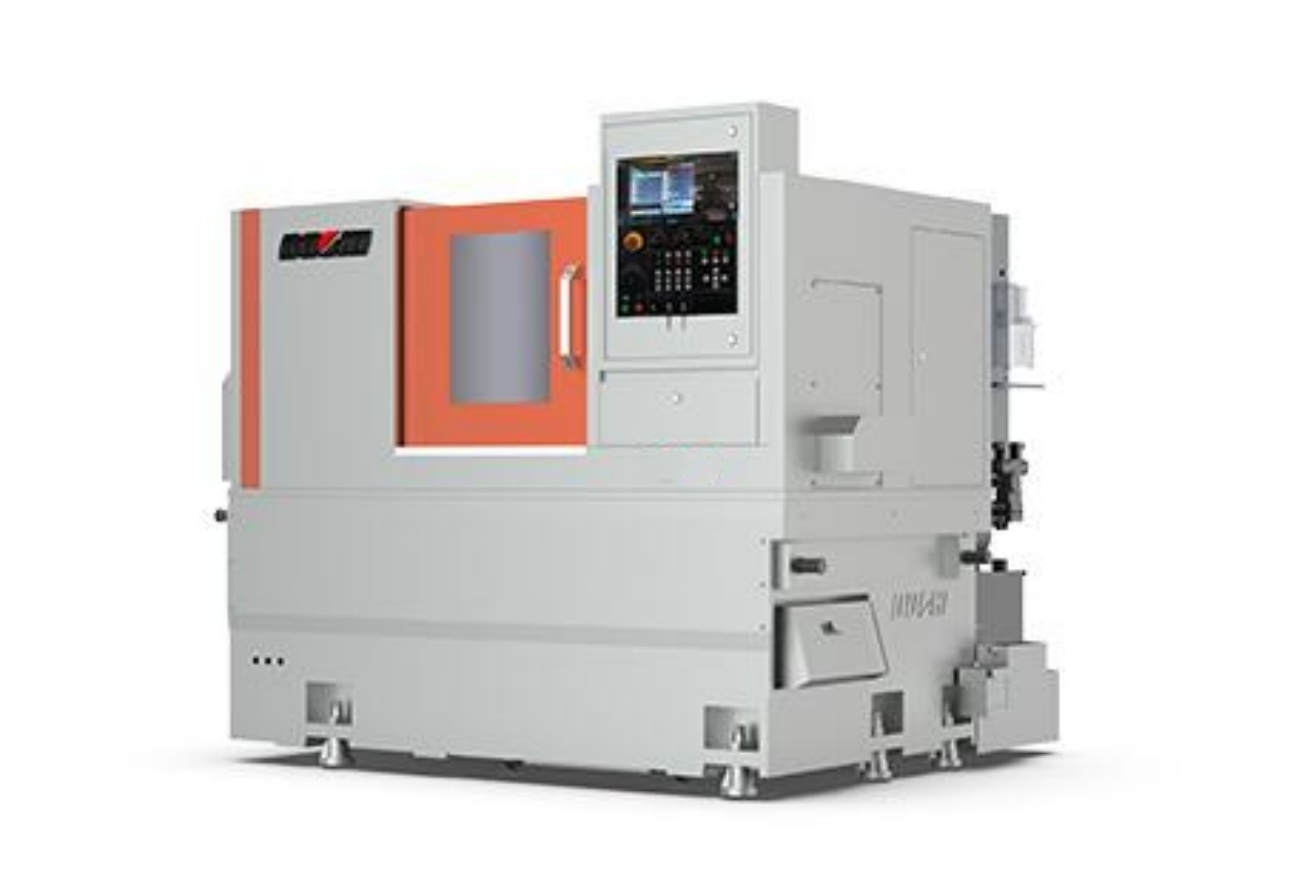

BL20-HSY is a high speed and high precision turning and milling center, the machine is equipped with double electric spindle, 12- station power  servo tool rest, high rigidity roller linear guideway, with Y axis function and double C axis function, can complete the workpiece’s turning and milling processing. Especially suitable for parts to complete all or most of the process of turning milling. Mainly used in automotive, machinery and other industries of precision machining parts.


Technical Specifications：

　

Model

Parameter

UNIT

BL20-HSY

Capacity

Max. Swing over bed

mm

Φ695

Max. turning length

mm

500

Max. turning diameter

mm

φ340

Standard working diameter

mm

360

Max. Bar diameter

mm

Φ65

Spindle

Chuck diameter

inch

8'' hollow

Spindle thru-hole

mm

Φ76

spindle speed

rpm

35-5000

BMTSpindle motor power

kW

21.5（40%ED）/19.6

Sub-spindle

Chuck diameter

mm

6'' hollow

Spindle thru-hole



Φ53

spindle speed

m/min

35-6000

BMTSpindle motor power



12.6（40%ED）/10.3

Turret

Capacity of tools



12

Milling spindle speed range

mm

25-125

Tools size (boring diameter)

mm

25/Φ40

Milling spindle motor power(40%ED)

mm

4/5.5

Feed

Rapid speed X/Z/Y

mm

30/10/30/30

Travel X/Z/Y

mm

190/±50/605/580

Other

Power

KVA

55

Dimensions

（L×W×H）

mm

3050×2130×1755

Machine weight (net weight)

Kg

4850
