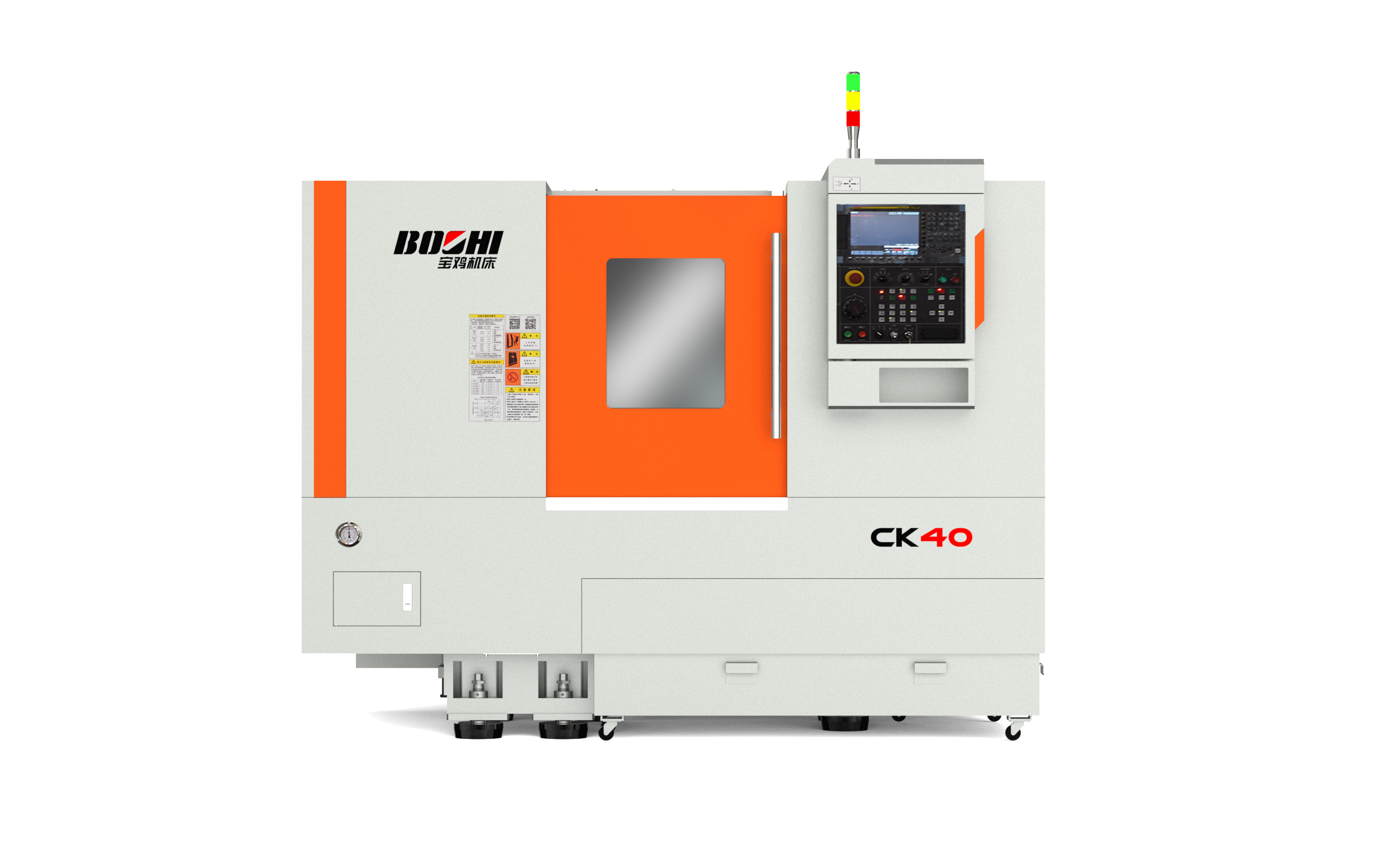

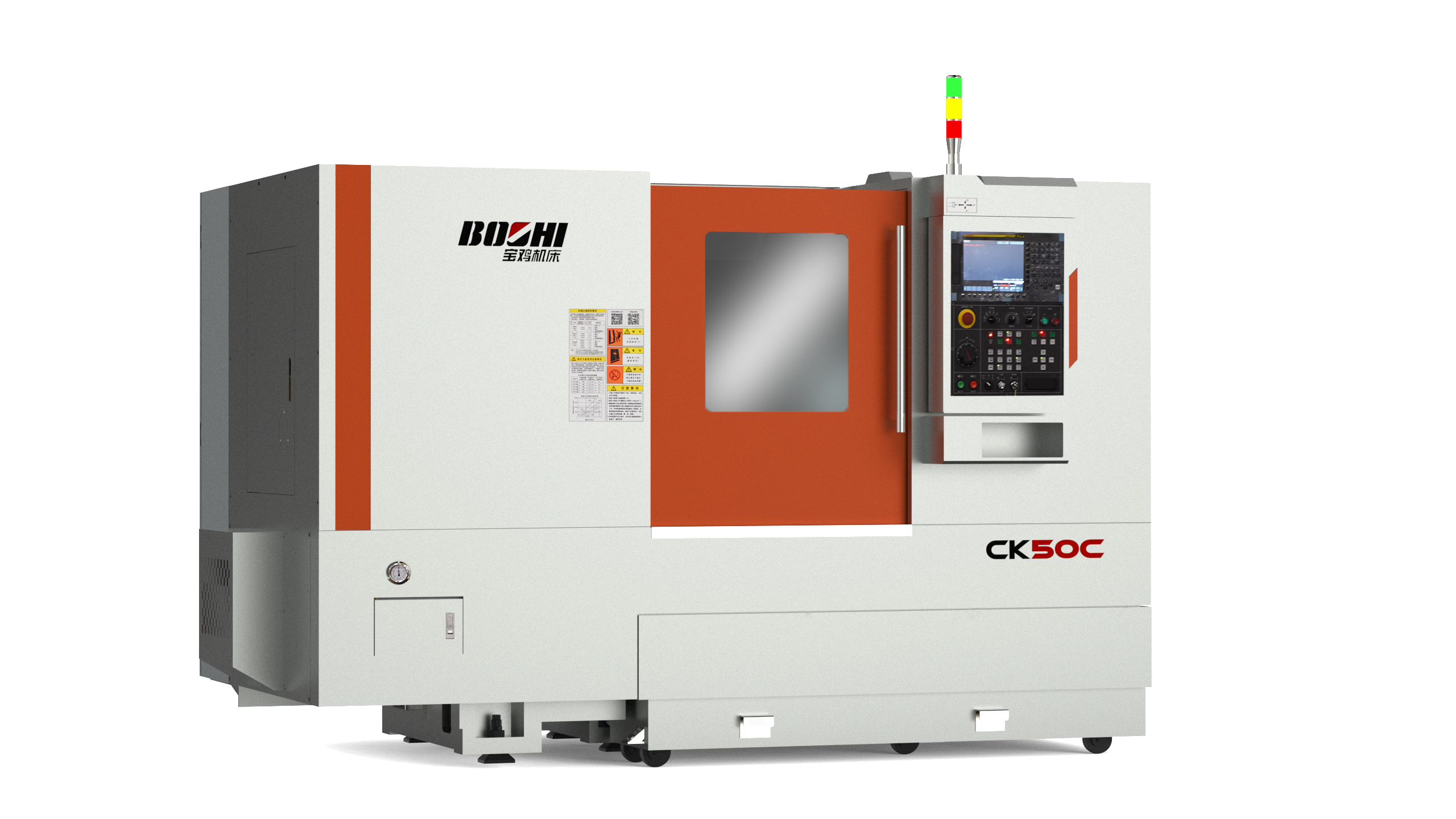

CK40/50 series watch video
Product Description:

These series machines are high precision CNC machines with good performance-price ratio.The high grade cast iron bed,slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0i mate control system.The machines,with a new appearance,easy-operated panel and full enclosed protection,are suitable for finishing or semi-finishing medium or small type workpieces.


Technical Specifications:

Item

Unit

CK40

CK40.1000

CK40S

CK40S.1000

CK40C

Capacity

Max. swing over bed

mm

Φ400

Φ400

Φ400

Φ400

Φ400

Max. swing over slide

mm

Φ260

Φ260

Φ260

Φ260

Φ260

Max. turning length

mm

400

1000

400

1000

400

Max. turning dia.

mm

Φ285

Φ285

Φ285

Φ285

Φ285

Max. bar dia.

mm

Φ42

Φ42

Φ42

Φ42

Φ42

Spindle

Hydraulic chuck dia.

mm

Φ165

Φ165

Φ165

Φ165

Φ165

Spindle nose



A2-5

(GB/

T5900.1)

A2-5

(GB/

T5900.1)

A2-5

(GB/

T5900.1)

A2-5 (GB/T5900.1)

A2-5 (GB/

T5900.1)

Spindle thru-hole

mm

Φ57

Φ57

Φ57

Φ57

Φ57

Spindle speed

r/min

70-3000

70-3000

70-3000

70-3000

80-4500

Power of main motor

kW

7.5

7.5

7.5

7.5

7.5

Tailstock

Quill dia./travel

mm

Φ70/80

Φ70/80

Φ70/80

Φ70/80

Φ70/80

Quill taper hole

MT No.

4

4

4

4

4

Carriage

Slant angle

DEG

45°

45°

45°

45°

45°

Travel X/Z

mm

165/410

165/1030

165/410

165/1030

165/410

Rapid traverse X/Z

m/min

12/16

12/16

12/16

12/16

30/24

Turret

Number of station



8/12

8/12

8/12

8/12

8/12

Tool size (turning/boring)

mm

20×20/Φ32

20×20/Φ32

20×20/Φ32

20×20/Φ32

20×20/Φ32

Others

Power source

kVA

25

25

25

25

25

Dimensions

(L×W×H)

mm

2370×1670×1970

3200×1700×1910

2370×1670×1970

3195×1695×1970

2370×1670×1970

Gross weight

kg

3000

4500

3000

4500

3000
