Horizontal CNC lathe

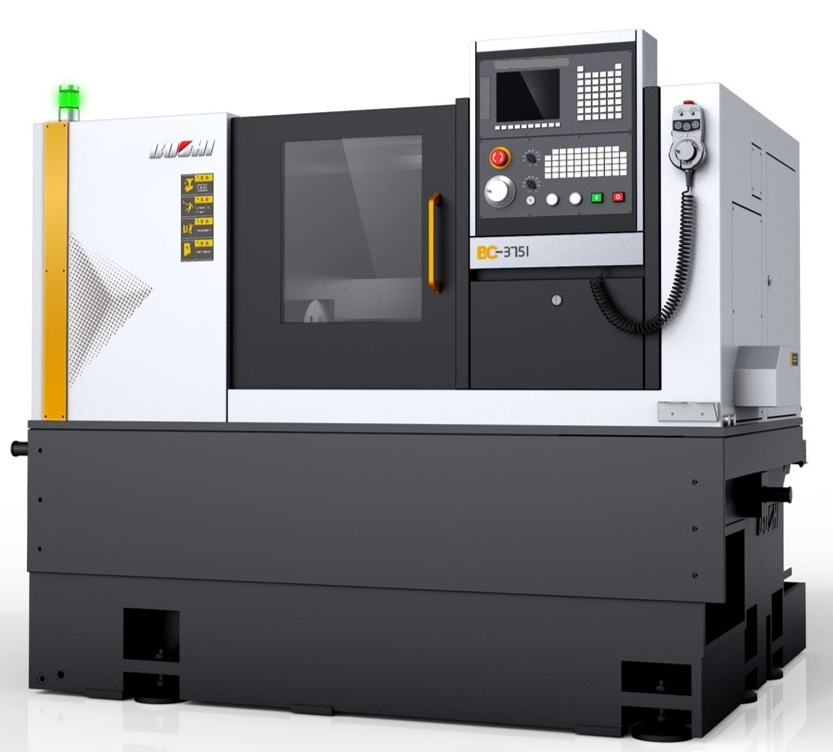

BC37 series
PRODUCTS
BC37 series watch video
Product Description：

BC37 series CNC lathe adopts integral flat bed, 30° oblique saddle structure, compact structure, large rotary diameter, small occupation area; Large knife plate, small tool interference. Equipped with domestic NUMERICAL control system, can process internal and external cylinder, cone, arc surface; All kinds of thread and hole drilling, expansion, reaming and other processing. Suitable for automobile, industry parts processing.

Technical Specifications：

Description

Unit

BC37 series

BC3731

BC3751

BC3751L

Capacity

Max swing over bed

mm

Φ550

Max.workpiece length

mm

310

510

Max. turning dia

mm

Φ370

Max swing over skateboard

mm

Φ330

diameter of Hydraulic chuck

in

8

Spindle

Spindle nose

GB5900.1

A2-6

Spindle hole taper



1:20

Spindle thru-hole

mm

Φ66

Spindle bearing diameter (front / behind)

mm

Φ100/Φ90

Spindle speed

r/min

50～4500

Moto

kW

11/15

Tailstock

Max quill travel

mm

150

Otions

350

Taper hole (Morse)

MT No.

4#

5#

Apron

Swivel angle

DEG

30°

Rapid traverse    X/Z

mm

210/350

210/550

Rapid traverse speed  X/Z

m/min

30/30

42/60

Servo motor torque  X/Z

N.m

10/15

/

Dia of ball screw X/Z

mm

Φ32

/

Tool

Diameter of ball screw



8

Tool section (Turning/boring)

mm

25×25/Φ40

Others

Power

kVA

23

Dimension (L×W×H)

mm

1929×2754×1794

2254×2754×1794

2254×3093×1794

Total weight

kg

4100

4400
