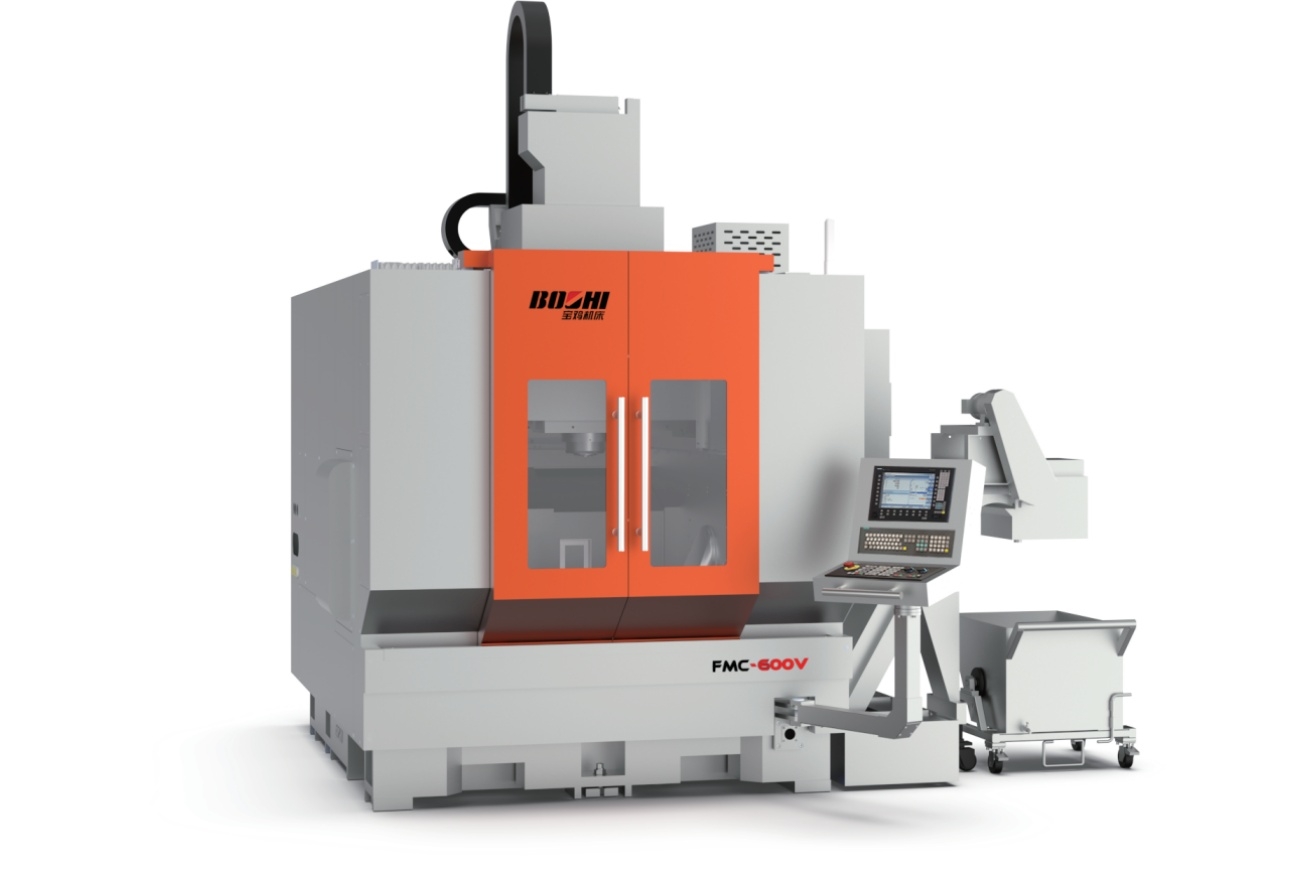

FMC-600V
PRODUCTS
FMC-600V watch video
Product Description：

The FMC-600V is a high-end 5-axis vertical Machining Center. The machine tool adopts the double column elevated structure, vertical processing, equipped with the cradle style double swing rotary table; Thought the twice clamping operations can complete the complete processing of complex precision parts, greatly improving production efficiency, product quality, and reducing production costs, Mainly used for efficient five axis machining of complex shaped parts such as gas turbines, compressor impellers, and small molds, it is an essential equipment in industries such as auto industry, and molds. This machine is currently a typical model widely used in 5-axis simultaneous machining .


Technical Specifications：

Items

unit

specifications

X-axis travel

mm

700

Y-axis travel

mm

760

Z-axis travel

mm

500

A-axis inclination angle

degree

±120°

C-axis indexing angle

degree

360°

table size

mm

600X600

Allow max. weight of workpiece

Kg

600

Spindle speed

r/min

18000

Spindle taper hole



HSK A63

Spindle power

kW

35

Distance from Spindle End Face to Work Table mode

mm

100-600

Fast forward system

X. Y, Z rapid feed speed

m/min

48



A-axis Max speed

m/min

50



C-axis Max speed

m/min

100

X/Y/Z motor power

kW

4.9/2x3.1/4.9

Rated torque of X/Y/Z motor

N.m

27/2x20/27

Max. torque of A-axis motor

N.m

2x2130

Max. torque of C-axis motor

N.m

1430

Capacity of tools

hold

32

Max. Tools diameter

mm

75 (with knives on both sides)





125 (no knives on both sides)

Max. tools length

mm

300

Max. tools weight

kg

8

Supply

kVA

80

Machine tool weight

kg

13500
